In this Coordinate Geometry Formula list, you will learn all the coordinate geometry formulas and must-know concepts for O-level Math Exams.
Coordinate Geometry is the study of geometric figures when they are plotted in the cartesian plane.
Before you read on, you might want to download this entire revision notes in PDF format to print it out, or to read it later.
This will be delivered to your email inbox.

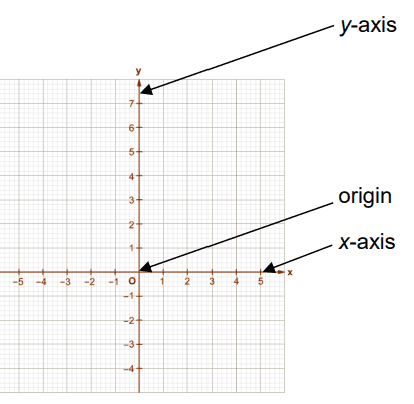

The cartesian plane is a coordinate system used to represent points and graphically illustrate relationships between two variables. The Cartesian plane consists of two perpendicular number lines, usually labeled the x-axis and the y-axis, intersecting at a point called the origin.
Points on the cartesian plane are represented using coordinates (x1, y1), where x1 corresponds to a number on the x-axis and y1 corresponds to a number on the y-axis.
Example of Cartesian Coordinate
The point A (2, 5) means 2 units to the right of the origin and 5 units up.
The point B (−2, 3) means 2 units to the left of the origin and 3 units up.
The point C (3, −2) means 3 units to the right of the origin and 2 units down.
The point D (−3, −4) means 3 units the left of the origin and 4 units down.
The gradient of a line (formed by two points) is a measure of the steepness of the line, and it is represented by a real number.
The gradient of a line (formed by two points) is also the ratio of the vertical change (rise) between the points to the horizontal change (run) between the two points.
Gradient of line = rise/run
= (y2 − y1)/(x2 – x1)
Consider Figure 1 of the cartesian plane shown below.
Length of AB = √ ( (y2 – y1)2 + (x2 – x1)2 ) units
Example of Length of Line Segment
Given that A (1, 6) and B (4, 8), find the length of the line segment AB.
AB = √ ( (4 – 1)2 + (8 – 6)2 )
= √ ( 32 + 22 )
= √13 (ans)
For a line with gradient m and passing through the point (1, 1), the equation of the line is given by: y − y1 = m(x − x1).
**You may still use y = mx + c and substitute (1, 1) into the equation to find the value of c.
Example of Equation of Line
Find the equation of the straight lines joining two points (−4, −1) and (4, 5)
gradient = ( 5 – (–1) )/( 4– (–4) )
= 6/8
=3/4
The equation of a straight line is y – 5 = 3/4 (x – 4)
y = 3/4 x + 2 (ans)
When two lines are parallel, then the two lines must have the same gradient.
Conversely, when two lines have the same gradient, then the two lines must be parallel.
Example of Parallel Lines
Find the equation of the straight line which is parallel to the given straight line below and passing through a point (2, 3)
The equation of a straight line passing through (2, 3) is y – 3 = –2(x – 2)
y = –2x + 7 (ans)
If two line segments have the same gradient and there is a common point between the two line segments, then the line segments must be collinear.

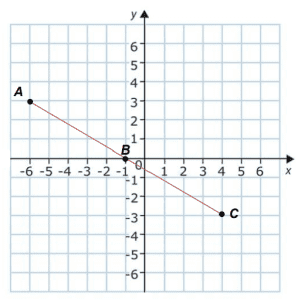

Example of Collinear Points
Prove that A, B, and C are collinear points.
The gradient of AC = (3 – (–3))/ (–6 – 4)
= – 3/5
The gradient of AB = (3 – 0)/(–6 – (–1) )
= –3/5
The gradient of BC = (0 – (– 3))/(–1 – 4)
= –3/5
Observe that gradient of AC = gradient of AB = gradient of BC.
Since they share a common point, the 3 points are collinear.

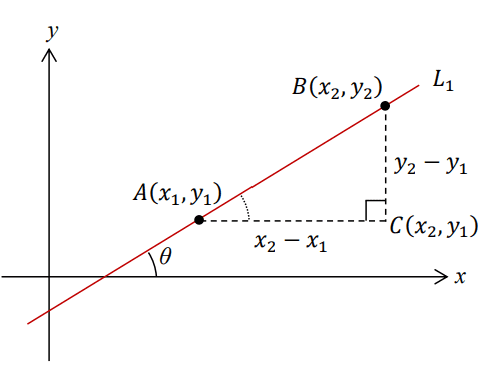

tan ∠BAC = (y2 – y1)/(x2 – x1)
tan θ = (y2 – y1)/(x2 – x1)
∴ tan θ = gradient of AB

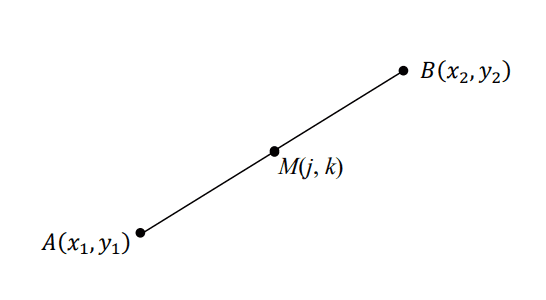

The midpoint of AB, M(j ,k) = ( (x1 + x2)/2, (y2 + y1)/2 )
Example of Midpoint
Find the coordinates of the midpoint, M, of (1, −1) and (−1, −5).
Midpoint = ( (1 + (–1) )/2, ((–1) + (–5))/2 )
= (0, –3)
If two lines L1 and L2 have gradients m1 and m2 respectively, then m1 × m2 = −1.
Find the equation of the line through B(0,6) and perpendicular to the line 3y + 1.5x = 2.
3y + 1.5x = 2
y = 2/3 x− 0.5
Gradient of the line through B(0,6) = −3/2
Sub (0,6) into = −3/2 x + c
c = 6
Equation of the line y = −3/2 x + 6

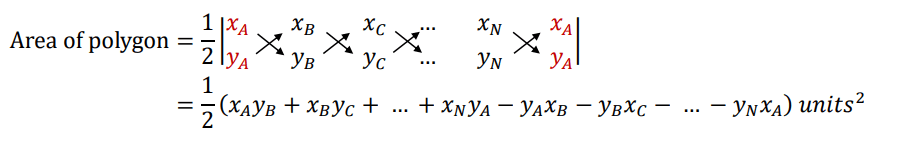

If A(xA. yA), B(xB. yB), C(xC. yC), …, N(xN. yN) form a polygon, where A, B, C, … and N are the vertices of the polygon in an anticlockwise sequence, then

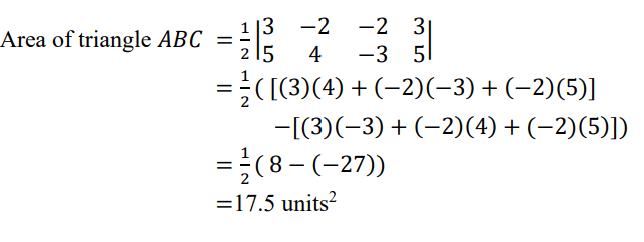

The vertices of the triangle is given as (3, 5), (−2, 4), and (−2, −3). Find the area of triangle ABC.
